NC Roll Feeder: R series

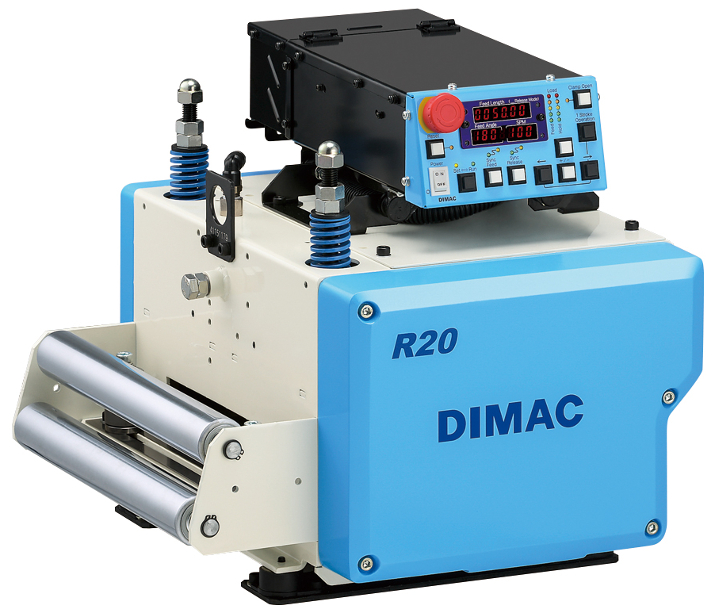

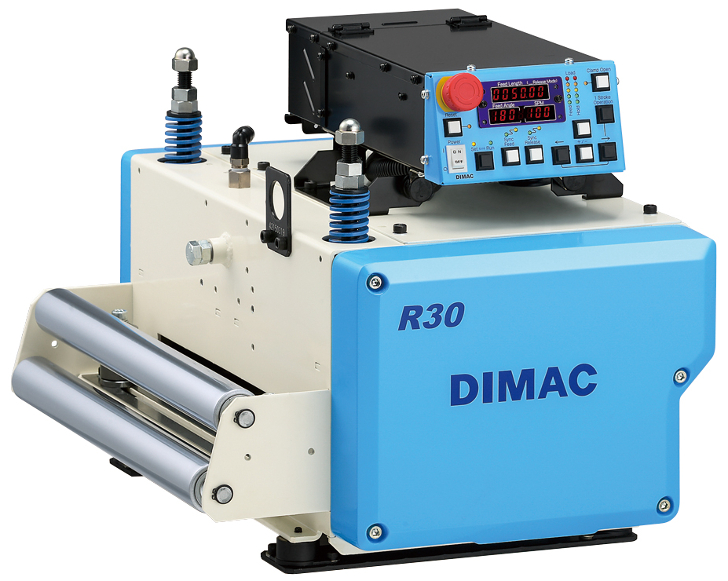

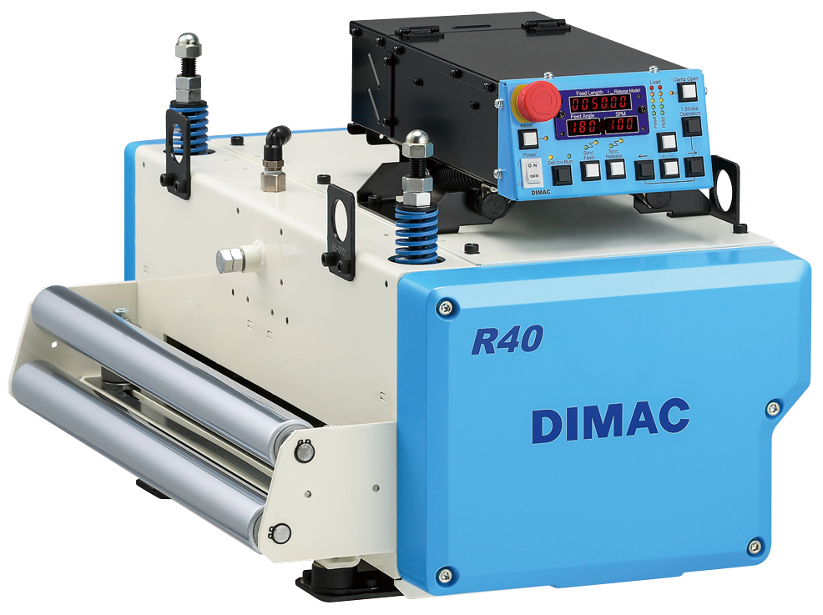

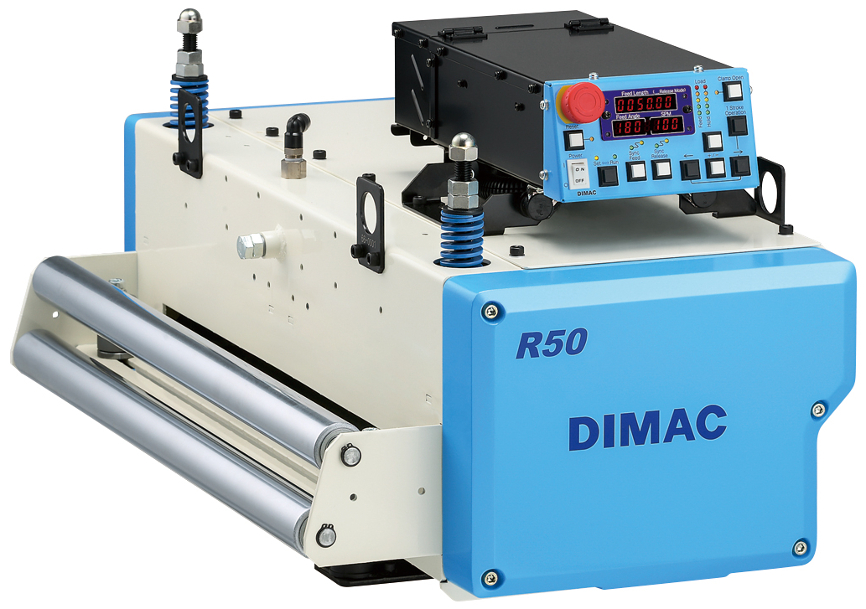

- Product code: R20,R30,R40,R50
-
The standard model whose release mechanism is based on air cylinder. The maximum stamp speed is 200 spm and the material width is 3.2 mm maximum. Four models according to material width are presented.
| R20 | R30 | R40 | R50 | ||
|---|---|---|---|---|---|
| Limit of Matrial | Max. Width | 200mm | 300mm | 400mm | 500mm |
| Max. Thickness | 3.2mm | ||||
| Max. Stamp Speed | 200spm | ||||
| Material Feeding | Method | Roller + Servomotor | |||
| Feed Length | 最大9999.99mm Adjusted by 0.01mm unit. | ||||
| Feed Speed | Automatic calculation *1 | ||||
| Standard Load Width / Thickness | 80/3.2mm 200/2.0mm | 80/3.2mm 200/2.0mm 300/1.6mm | 80/3.2mm 200/2.0mm 400/1.6mm | 80/3.2mm 200/2.0mm 500/1.6mm | |
| Material Pressing | Method | Spring | |||
| Pressing Capacity | MAX 1961N Adjusted by screws. | ||||
| Material Releasing Method | Air Cylinder | ||||
| Required Power Supply | Three phase or single phase 200V±10%, 50/60Hz | ||||
| Product Weight | 42kg | 49kg | 55kg | 61kg | |
