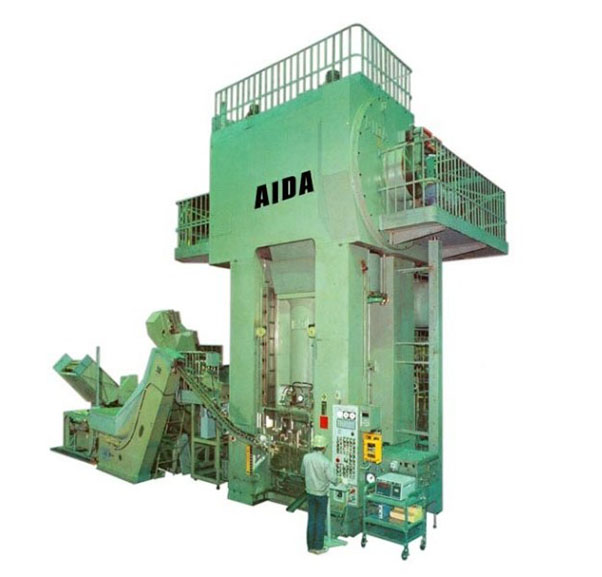

AIDA CF1 SERIES
- Mã SP: AIDA CF1
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA CF1 SERIES
High forming forces can be applied high above bottom dead center.
- Featues a simple link mechanism with low thrust force.
- High-level operability and reduced setup time.
- Capable of a broad range of forming such as shaft forming, split-die forging, etc.
Capacity Range
Press capacities range from 2200 kN to 15000 kN
| Model | CF1-220C | CF1-400S | CF1-630S | |
| Tonnage capacity | (tf) | 220 | 400 | 630 |
| Rated tonnage point | (mm) | 7 | 10 | 10 |
| Slide stroke length | (mm) | 160 | 400 | 400 |
| S.P.M. | (spm) | 25~40 | 20~30 | 15~25 |
| Die height | (mm) | 420 | 900 | 900 |
| Slide adjustment | (mm) | 30 | 50 | 50 |
| Slide area (L.R. x F.B.) | (mm) | 700 x 500 | 750 x 750 | 800 x 800 |
| Bolster area (L.R. x F.B.) | (mm) | 1050 x 600 | 750 x 750 | 800 x 800 |
| Frame gap | (mm) | 280 | – | – |
| Work height | (mm) | 950 | 700 | 700 |
| Main motor | (kW) | VS22 | VS37 x 2 | SCR75 |
| Knockout capacity | (tf) | 10 | 32 | 40 |
| Knockout stroke | (mm) | 70 | 150 | 150 |
| Knockout pin lifter | (tf) | 1 | 1 | 1 |
| Diameter of knockout pin | (mm) | Ø50 x 3 | Ø60 | Ø60 |
