AIDA MSP SERIES
- Mã SP: AIDA MSP SERIES
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call

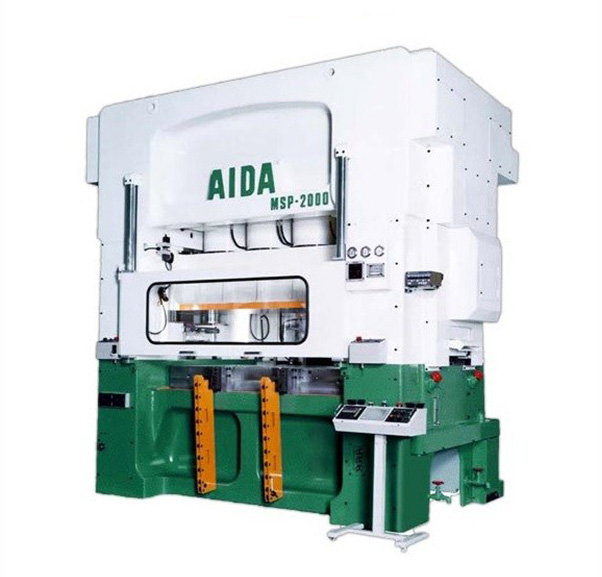

AIDA MSP SERIES
A state-of-the-art press equipped with a multi-suspension.
- The highly rigid frame achieves the long-team minimal BDC deviation required for integrated lamination dies.
- Slide lateral movement is suppressed during operation by guide posts which make the most of the merits of slide bearings and ball bearings.
Capacity Range
Press capacities are 2200 kN and 3000 kN, 4000 kN.
| Model | Capacity | Stroke Length | Working energy | Strokes per Minute (No Load) | Die Height | Slide Area | Bolster Area | Max upper die weight | Side opening |
| (kN) | (mm) | J | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (kg) | (mm) | |
| MSP-2200-200 | 2200 | 30 | 2000 | 120～500 | 420～480 | 2000×800 | 2000×1000 | 1800 | 490 |
| MSP-3000-230 | 3000 | 30 | 3000 | 120～420 | 420～520 | 2300×800 | 2300×1000 | 2000 | 490 |
| MSP-3000-270 | 3000 | 30 | 3000 | 100～400 | 470～520 | 2700×800 | 2700×1000 | 2300 | 490 |
| MSP-4000-280 | 4000 | 30 | 4000 | 100～350 | 500～600 | 2800×900 | 2800×1200 | 2300 | 980 |
