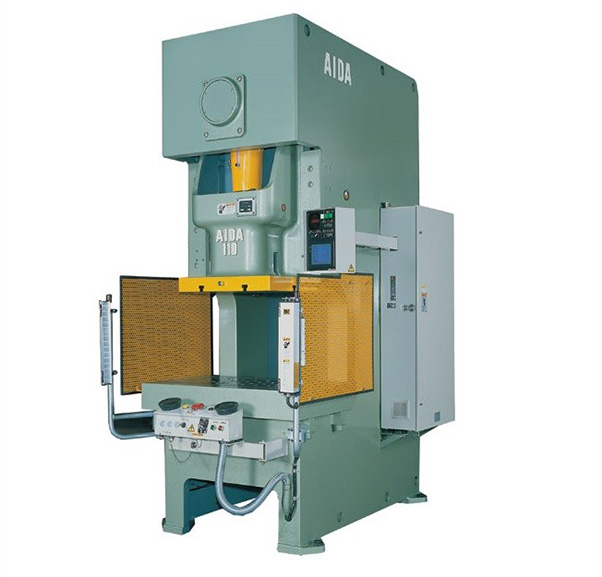

AIDA NC1-E SERIES
- Mã SP: AIDA NC1-E SERIES
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA NC1-E SERIES
High-performance basic machine
- The highly rigid frame construction minimizes frame elongation and deflection that occurs during stamping.
- AIDA’s Hydraulic Overload Protector (HOLP) activates instantaneously, protecting press and tooling, and it resets automatically.
- To further improve safety and operability, the press operation circuit uses a multiprocessing press controller (MPC) unique to AIDA, and includes a large touch screen interface.
Capacity Range
Press capacities range from 350 kN to 2500 kN.
| Model | Capacity | Stroke Length | Strokes per minute (No Load) | Die Height | Slide Area | Bolster Area | Frame Gap | |
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | ||
| NC1-350 | (1)E | 350 | 70 | 90～150 | 200 | 380×300 | 730×310 | 160 |
| (2)E | 350 | 120 | 55～105 | 250 | 380×300 | 730×380 | 195 | |
| NC1-450 | (S)E | 450 | 50 | 85～170 | 250 | 410×340 | 810×360 | 185 |
| (1)E | 450 | 80 | 65～130 | 250 | 410×340 | 810×360 | 185 | |
| (2)E | 450 | 120 | 50～95 | 270 | 410×340 | 810×440 | 225 | |
| NC1-600 | (S)E | 600 | 55 | 80～165 | 270 | 480×400 | 870×400 | 210 |
| (1)E | 600 | 90 | 60～120 | 270 | 480×400 | 870×400 | 210 | |
| (2)E | 600 | 140 | 45～85 | 300 | 480×400 | 870×520 | 270 | |
| NC1-800 | (1)E | 800 | 100 | 55～110 | 300 | 540×460 | 950×460 | 240 |
| (2)E | 800 | 160 | 40～75 | 320 | 540×460 | 950×600 | 310 | |
| NC1-1100 | (1)E | 1100 | 110 | 50～100 | 320 | 630×520 | 1070×520 | 270 |
| (2)E | 1100 | 180 | 35～65 | 350 | 630×520 | 1070×680 | 350 | |
| NC1-1500 | (1)E | 1500 | 130 | 40～85 | 350 | 700×580 | 1170×600 | 310 |
| (2)E | 1500 | 200 | 30～55 | 400 | 700×580 | 1170×760 | 390 | |
| NC1-2000 | (1)E | 2000 | 160 | 35～70 | 410 | 880×650 | 1390×680 | 350 |
| (2)E | 2000 | 250 | 25～45 | 450 | 880×650 | 1390×840 | 430 | |
| NC1-2500 | (2)E | 2500 | 300 | 20～35 | 540 | 1100×730 | 1750×900 | 470 |
