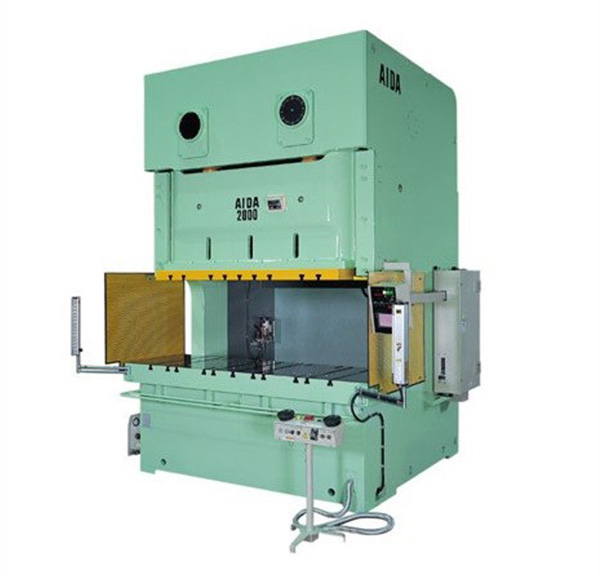

AIDA NC2-E SERIES AIDA NC2-E SERIES • Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA NC2-E SERIES AIDA Số lượng: 1 cái
AIDA NC2-E SERIES
˂
˃
  • AIDA NC2-E SERIES

  • Mã SP: AIDA NC2-E SERIES
  • • Maker: AIDA Engineering
    • Made in: Japan
    • Prices: Please call

  •


AIDA NC2-E SERIES

header logo01

High-performance basic machines with a wide bed
  • Featuring a highly rigid frame and counter rotating gear construction, that withstands eccentric loading.
  • Each single component is processed with high precision, thus minimizing overall clearance and lower breakthrough.
  • High versatility capablility. Easily accessible frame designs suitable for both transfer and progressive forming.
Capacity Range

Press capacities range from 1100 kN to 2500 kN.

Model

Tonnage Capacity

Stroke Length

Strokes per minute (No Load)

Die Height

Slide Area

Bolster Area

Frame Gap

Working surface height

(kN)

(mm)

(spm)

(mm)

LR×FB(mm)

LR×FB(mm)

(mm)

(mm)

NC2-1100

(1)E

1100

110

50~100

350

1360×520

1880×520

270

900

(2)E

1100

180

35~65

400

1360×520

1880×680

350

900

NC2-1600

(1)E

1600

130

40~85

400

1500×580

2040×600

310

900

(2)E

1600

200

30~55

450

1500×580

2040×760

390

900

NC2-2000

(1)E

2000

150

35~70

450

1850×650

2420×680

350

1000

(2)E

2000

250

25~45

500

1850×650

2420×840

430

1000

NC2-2500

(1)E

2500

170

25~55

450

2100×700

2700×760

390

1100

(2)E

2500

280

20~35

550

2100×700

2700×920

470

1100
