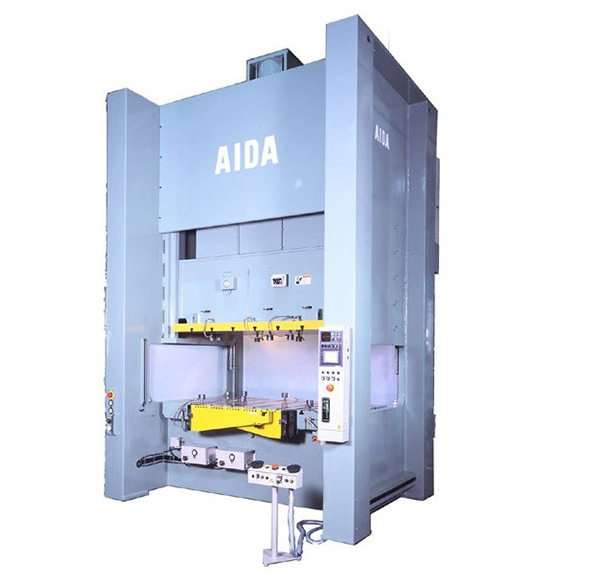

AIDA NS2 SERIES
- Mã SP: AIDA NS2 SERIES
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA NS2 SERIES
The next generation of high-performance basic machines with a wide bed
- Achieving high precision and high value-added forming.
- Its unitized straightside construction eliminates frame deflection.
- Equipped with a recirculating lubrication system.
- Full-length slide guiding.
Capacity Range
Press capacities range from 1100 kN to 4000 kN. Also available with a wide bed W Series..
| Model | Capacity | Stroke Length | Strokes per minute (No Load) | Die Height | Slide Area | Bolster Area | Side opening | Working surface height | |
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (mm) | ||
| NS2-1100 | (1) | 1100 | 110 | 50～110 | 350 | 1360×520 | 1660×680 | 700×285 | 900 |
| (2) | 1100 | 180 | 35～70 | 400 | 1360×520 | 1660×680 | 700×335 | 900 | |
| NS2-1600 | (1) | 1600 | 130 | 40～90 | 400 | 1500×580 | 1800×760 | 780×325 | 900 |
| (2) | 1600 | 200 | 30～60 | 450 | 1500×580 | 1800×760 | 780×375 | 900 | |
| NS2-2000 | (1) | 2000 | 150 | 35～75 | 450 | 1850×650 | 2150×840 | 860×365 | 1000 |
| (2) | 2000 | 250 | 25～50 | 500 | 1850×650 | 2150×840 | 860×415 | 1000 | |
| NS2-2500 | (1) | 2500 | 170 | 25～60 | 450 | 2100×700 | 2400×920 | 940×355 | 1100 |
| (2) | 2500 | 280 | 20～40 | 550 | 2100×700 | 2400×920 | 940×455 | 1100 | |
| NS2-3000 | (1) | 3000 | 200 | 20～50 | 600 | 2400×900 | 2400×1200 | 1220×530 | 1150 |
| (2) | 3000 | 300 | 15～35 | 650 | 2400×900 | 2400×1200 | 1220×580 | 1150 | |
| NS2-2500W | (2) | 2500 | 500 | 10～30 | 600 | 2100×1200 | 2400×1400 | 1400×620 | 1100 |
| NS2-3000W | (2) | 3000 | 500 | 10～30 | 650 | 2100×1200 | 2400×1400 | 1400×670 | 1150 |
| NS2-4000W | (2) | 4000 | 500 | 10～30 | 700 | 2100×1200 | 2400×1400 | 1400×720 | 1200 |
