AIDA PMX SERIES AIDA PMX SERIES • Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA PMX SERIES AIDA Số lượng: 1 cái
AIDA PMX SERIES
˂
˃
  • AIDA PMX SERIES

  • Mã SP: AIDA PMX SERIES
  • • Maker: AIDA Engineering
    • Made in: Japan
    • Prices: Please call

  •


AIDA PMX SERIES

header logo01

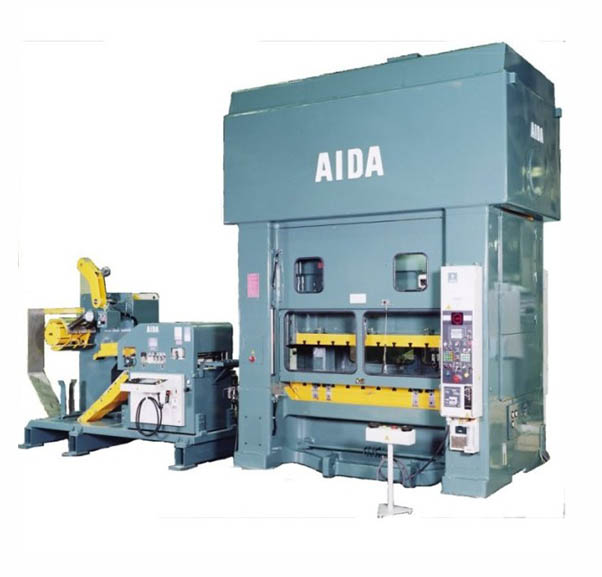

A basic machine for high precision progressive die applications.
  • Link motion improves productivity and assures stable high precision forming.
  • Die design and layout is easy because the distance between the suspension points is greater than the usable area and the structure withstands eccentric loads.
  • Dynamic balancers reduce vibration and enable stable high-speed production.
Capacity Range

Press capacities range from 2000 kN to 6000 kN. Besides link motion, crank motion is also available. Large-size presses are treated individually.

Model

Capacity

Stroke Length

Strokes per minute under no load

Die Height

Slide Area

Bolster Area

Max upper die weight

Side opening

(kN)

(mm)

(spm)

(mm)

LR×FB(mm)

LR×FB(mm)

(kg)

(mm)

PMX-2000

PMX-L2-2000(1)155-83

2000

200

50~120

475

1550×830

1550×950

1000

850×375

PMX-L2-2000(1)155-88

2000

200

50~120

475

1850×880

1850×950

1000

850×375

PMX-3000

PMX-L2-3000(1)185-88

3000

200

40~100

550

1850×880

1850×1000

1000

900×450

PMX-L2-3000(1)215-100

3000

200

40~100

550

2150×1000

2150×1000

1500

1020×450

PMX-L2-3000(1)245-120

3000

200

40~100

550

2450×1200

2450×1200

1500

1220×450

PMX-4000

PMX-L2-4000(1)215-115

4000

200

30~80

650

2150×1150

2150×1250

3000

1170×550

PMX-L2-4000(1)245-115

4000

300

30~60

700

2450×1150

2450×1250

3000

1170×550

PMX-5000

PMX-L2-5000(1)215-115

5000

250

30~70

700

2150×1150

2150×1250

3000

1170×600

PMX-L2-5000(1)245-115

5000

250

30~70

700

2450×1150

2450×1250

3000

1170×600

PMX-6000

PMX-L2-6000(1)245-125

6000

250

30~70

750

2450×1250

2450×1400

3000

1270×650
