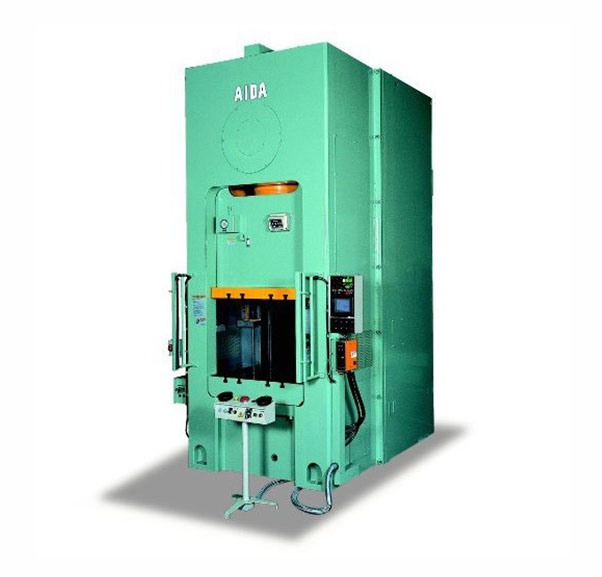

AIDA S1-E SERIES
- Mã SP: AIDA S1-E SERIES
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA S1-E SERIES
Further expanding the limits of thick material forming.
- The S1-E Series overcomes three limitations related to thick material forming: 1) Die life, 2) Vibration and noise, and 3) High precision and high productivity.
- Featuring AIDA’s unique link motion slow touch to the die and a straightside construction translates into high frame (bed) and slide rigidity, minimal deflection, and the ability to withstand eccentric loads, enabling the production of high-quality stamped products with minimal variation.
Capacity Range
Press capacities are 3000 kN and 5000 kN.
| Model | Capacity | Stroke Length | Strokes per minute (No Load) | Die Height | Slide Area | Bolster Area | Rated tonnage point above BDC | Slide knockout capacity※1 | Die cushion capacity |
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (kN) | (kN) | |
| S1-3000E | 3000 | 250 | 15～40 | 570 | 1000×900 | 1000×985 | 13 | 30 | 160 ※1 |
| 250 ※2 | |||||||||
| S1-5000E | 5000 | 300 | 15～35 | 650 | 1200×1100 | 1200×1215 | 13 | 50 | 260 ※1 |
| 400 ※2 |
