NC Grip Feeder G Series
- Mã SP: TG4, G11
-
A double side feed type with a press following speed of 1000spm and a single feed type handling up to feed length 110mm are available in a lineup.
The material releasing mechanism using electromagnet driven by inverter doesn't need compressed air. It provides stable release timing and numerical control about pressure for materials.
New control unit automatically adjusts feed acceleration by specified feed langth and press stamping speed. And it provides multi layer operation with option unit MP6. A level meter for monitoring the load of the feed motor is also installed.

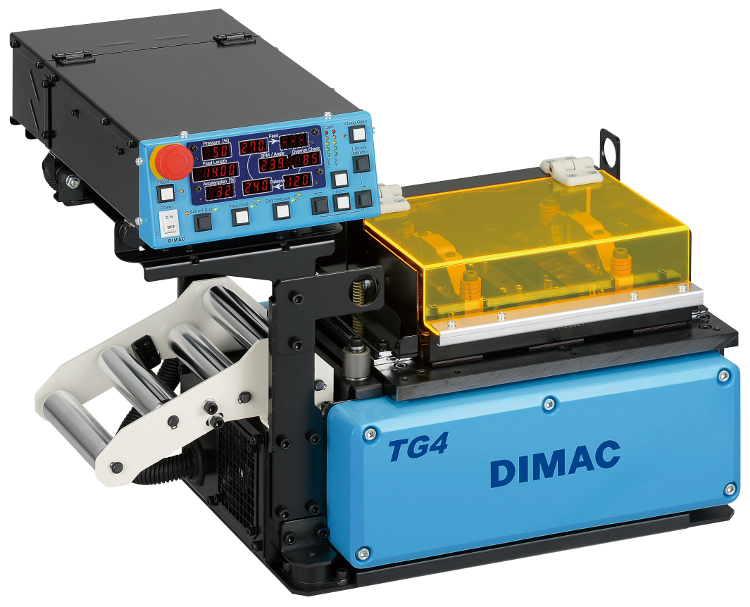

| TG4 | ||
|---|---|---|
| Limit of Matrial | Max. Width | 120mm |
| Max. Thickness | 0.8mm | |
| Max. Stamp Speed | 1000spm | |
| Material Feeding | Method | Grip system by servo motor. |
| Feed Length | MAX 40.00mm Adjusted by 0.01mm unit. | |
| Feed Acceleration | Automatic calculation *1 | |
| Material Pressing | Method | Electromagnet |
| Pressing Capacity | 10～1000N Adjusted by 91 step. | |
| Material Releasing Method | Spring | |
| Required Power Supply | Three-phase 200V±10%, 50/60Hz | |
| Product Weight | 43kg | |
| G11 | ||
|---|---|---|
| Limit of Matrial | Max. Width | 8 ～ 120mm |
| Max. Thickness | 0.8mm | |
| Max. Stamp Speed | 600spm | |
| Material Feeding | Method | Grip system by servo motor. |
| Feed Length | MAX 110.00mm Adjusted by 0.01mm unit. | |
| Feed Acceleration | Automatic calculation *1 | |
| Material Pressing | Method | Electromagnet |
| Pressing Capacity | 10～1000N Adjusted by 91 step. | |
| Material Releasing Method | Spring | |
| Required Power Supply | Three-phase 200V±10%, 50/60Hz | |
| Product Weight | 42kg | |
