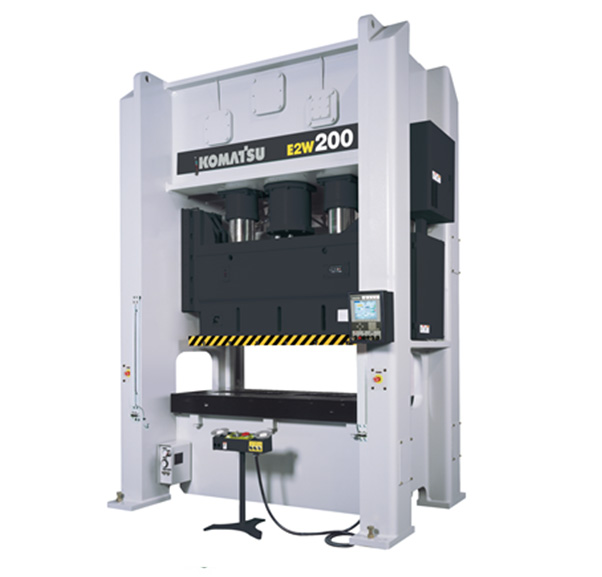

Komatsu Solid Frame Progressive Presses E2W
- Mã SP: E2W
-
A standard model for general use of Straight Side Presses.
Solid Frame Progressive Presses
E2W series
E2W110 / E2W160 / E2W200 / E2W250 / E2W300
- It can be used for many types of press forming.
- High rigidity, integral structure
- Compact and excerllent in working property
- Purpose：Precision,General
- Frame：Straight
- Point：2pt
- Capacity：1100 - 3000kN
| Model | E2W110 | E2W160 | E2W200 | E2W250 | E2W300 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | HVS | SVS | HVS | SVS | HVS | SVS | HVS | SVS | HVS | SVS | ||
| Capacity | kN | 1100 | 1600 | 2000 | 2500 | 3000 | ||||||
| Slide Stroke | mm | 110 | 180 | 130 | 200 | 150 | 250 | 170 | 300 | 170 | 350 | |
| Max SPM | min-1 | 100 | 70 | 85 | 60 | 70 | 50 | 55 | 40 | 40 | 30 | |
| Die Height | mm | 400 | 460 | 500 | 550 | 600 | ||||||
| Slide Adjustment | mm | 100 | 100 | 120 | 120 | 200 | ||||||
| Slide | L-R | mm | 1400 | 1600 | 1850 | 2100 | 2100 | |||||
| F-B | mm | 520 | 580 | 650 | 700 | 900 | ||||||
| Bolster | L-R | mm | 1660 | 1850 | 2150 | 2400 | 2400 | |||||
| F-B | mm | 700 | 760 | 850 | 950 | 1200 | ||||||
| Thickness | mm | 160 | 170 | 180 | 190 | 200 | ||||||

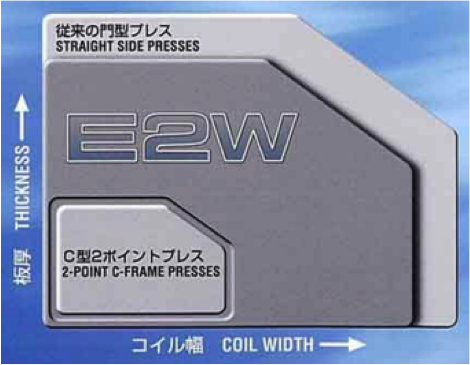

It can be used for many types of press forming.
The E2W press offers not only the conventional C-type two-point Range but also applies to wide range including heavy-load, high-precision presswork equivalent to straight side press.It can be used for progressive forming of wide range of automotive and electrical machinery parts.

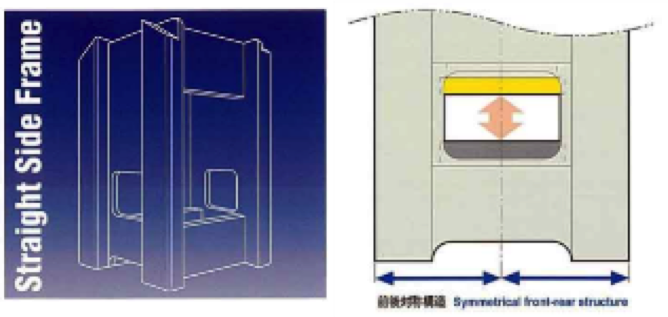

High rigidity, integral structure
With the four-column high rigidity "solid frame" of symmetrical configuration both left-right and front-rear to prevent deformation, high forming accuracy has been attained. Employing a plunger guide mechanism and a six face gib structure, thrust force created in the drive is not transmitted to the slide and die to maintain dynamic accuracy for long.

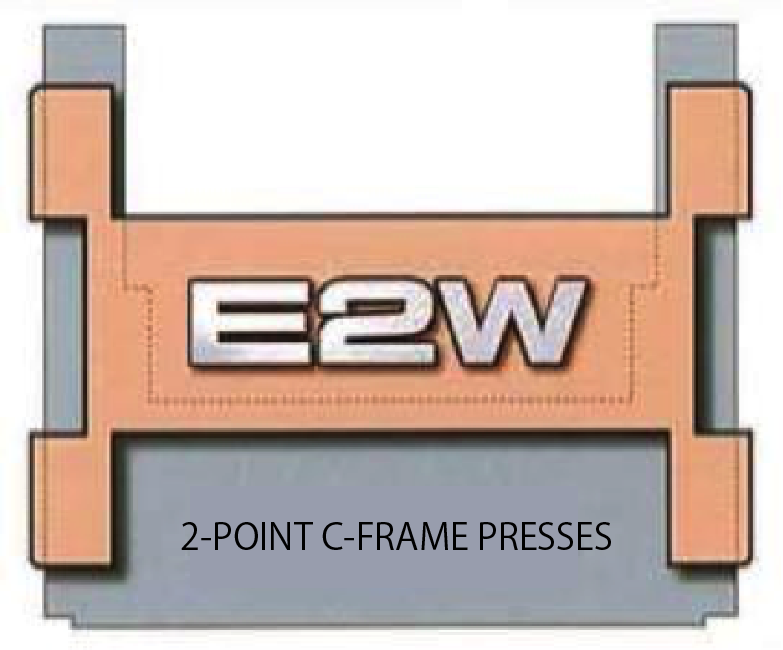

Compact and excerllent in working property
The compact frame structure reduces installation space and accessibility to the die-area has been improved.
