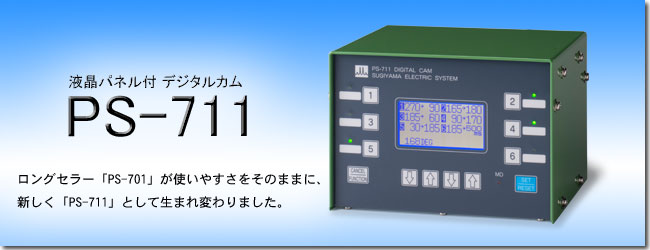

PS-711 digital cam with liquid crystal display is designed to compare signals from the rotary encoder installed to the rotating shaft of the press machine with the setting values and to output control signals conforming to the rotary cam.

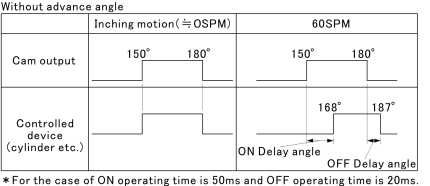

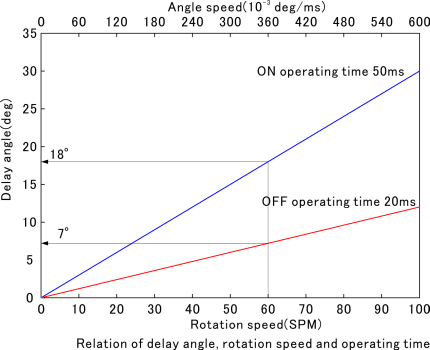

Similarly to our “PS-701,” the PS-711 has [advance angle function] that compensates delays in operation of the machine, [Timer function] that controls the ON time, [Motion detector function] that monitors rotation signals of the rotary encoder, and so on.
In addition, operability and visibility are advanced with [liquid crystal display] and SSR of all 6CH is common use both AC and DC that achieves better cost-effectiveness.
• Maker: SUGIYAMA
• Make in: Japan
• Prices: Please call
