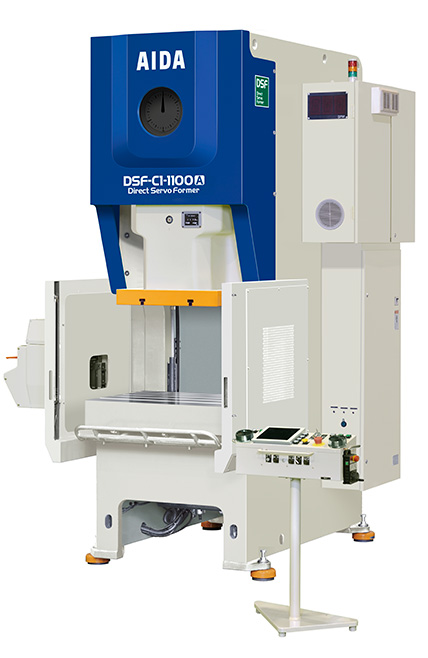

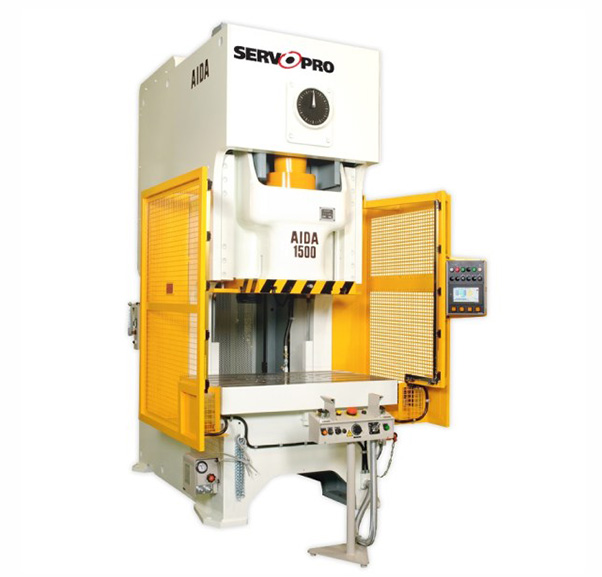

AIDA DSF-C1-A SERIES
- Mã SP: AIDA DSF-C1-A
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA DSF-C1-A SERIES
The Next Evolution in Direct Servo Formers.c
- (1)Enhanced Productivity
Equipped with a newly-developed AC servo motor and a lighter-weight drivetrain, the pendulum motion SPM has been increased between 5~10% compared to existing servo presses. (Compared to existing AIDA servo presses.) - (2)Improved Operability
When combined with an AIDA feeder, production can be optimized via simple settings. - (3)A Machine with High Energy-Efficiency
Equipped with Energy-Conserving ECO Modes. The electrical power monitor is standard equipment. Using a selector button, you can now select between three new modes–Standard, ECO1, and ECO2–to optimize the electrical power consumption in the non-forming portion of the stroke. This enables reduced power consumption based on production conditions. Additionally Electrical current fluctuations at the primary-side power source are constrained via a power supply converter that is equipped with control features.
Capacity Range
Press capacities range from 800 kN to 2500 kN.
| Internal Frame Dimensions | Working Surface Height | Installation
Dimensions | Maximum
Dimensions | Total Height | ||||
| C | h2 | a1 x b1 | a2 x b2 | h1 | ||||
| DSF-C1-A | DSF-C1-800A | 510 | 900 | 1000×1400 | 1375×1915 | 2730 | ||
| DSF-C1-1100A | 550 | 900 | 1120×1660 | 1510×2140 | 2960 | |||
| DSF-C1-1500A | 620 | 900 | 1220×1910 | 1620×2440 | 3185 | |||
| DSF-C1-2000A | 800 | 1000 | 1440×2300 | 1810×2700 | 3700 | |||
| DSF-C1-2500A | 1115 | 1100 | 1850×2425 | 2175×2895 | 4400 | |||
| Model | (unit) | DSF-C1-800A | DSF-C1-1100A | DSF-C1-1500A | DSF-C1-2000A | DSF-C1-2500A | ||
| Tonnage Capacity | (kN) | 800 | 1100 | 1500 | 2000 | 2500 | ||
| Working Energy | (J) | 4000 | 4600 | 7900 | 13100 | 24000 | ||
| Stroke Length | Fwd./Rev.Motion | ( mm ) | 60/100/130 | 70/110/160 | 80/120/160 | 110/160/200 | 120/180/240 | |
| Full Stroke | 160 | 180 | 200 | 250 | 300 | |||
| Continuous SPM
＊１ | At Fwd./Rev.Motion | ( spm ) | 128/102/86 | 122/98/79 | 110/90/75 | 89/74/63 | 75 /60/ 49 | |
| At Full Stroke | ~80 | ~70 | ~60 | ~50 | ~40 | |||
| Die Height | (mm) | 320 | 350 | 400 | 450 | 540 | ||
| Slide Adjustment | (mm) | 80 | 90 | 100 | 110 | 120 | ||
| Slide Area (LR×FB) | (mm) | 540×460 | 630×520 | 700×580 | 880×650 | 1100×730 | ||
| Bolster Area (LR×FB) | (mm) | 810×600 | 940×680 | 1050×760 | 1240×840 | 1610×900 | ||
| Bolster Thickness | (mm) | 140 | 155 | 165 | 180 | 180 | ||
| Frame Gap | (mm) | 310 | 350 | 390 | 430 | 470 | ||
| Max. Upper Die Weight | (kg) | 183 | 218 | 225 | 1000 | 1300 | ||
| Main Motor (AC Servo) | (kW) | 35 | 40 | 40 | 65 | 100 | ||
| Power Supply Capacity | (kVA) | 16 | 16 | 22 | 32 | 37 | ||
| Required Air Pressure | (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||
| Foundation Bolt Position (F/B x L/R) | (mm) | 920×1210 | 1040×1440 | 1140×1660 | 1360×2020 | 1730×2135 | ||
| Bed Hole Dimension (F/B x L/R) | (mm) | 624×280 | 666×320 | 736×360 | 906×460 | 1220×480 | ||
| Die Cushion Model | (unit) | NCY-8-1 | NCY-11-1 | NCY-15-1 | NCY-20-1 | NCY-25-1 | ||
| Capacity（0.5Mpa) | (kN) | 63 | 80 | 100 | 140 | 140 | ||
| Stroke Length | (mm) | 70 | 80 | 80 | 100 | 100 | ||
| Pad Area(LR×FB) | (mm) | 410×260 | 480×300 | 540×340 | 640×440 | 640×440 | ||
