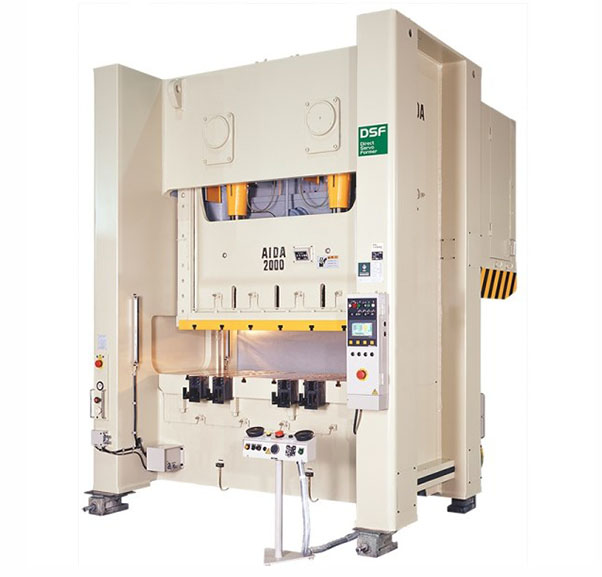

AIDA DSF-N2 SERIES
- Mã SP: AIDA DSF-N2
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call
AIDA DSF-N2 SERIES
The 3rd generation of metal forming has arrived.
- AIDA’s unique high-torque, low RPM servomotor is connected directly to the driveshaft. Realizing high precision and high value-added forming.
- Optimum slide motions even for difficult-to-form material or for product shaping conditions can be easily set and then stored in the job recipe data bank.
Capacity Range
Press capacities range from 1100 kN to 3000 kN. Also available with a wide bed W Series to accommodate a fully synchronized servo transfer unit.
| Model | Capacity | Stroke Length | Continuous SPM (No Load)※1 | Die Height | Slide Area | Bolster Area | Side opening※2 |
| (kN) | Upper Row Denotes Fwd/Rev. Motion(mm) | Upper Row Denotes Fwd/Rev. Motion(mm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | |
| DSF-N2-1100 | 1100 | 70/110/150 | 102/84/70 | 400 | 1360×520 | 1660×680 | 700×345(335) |
| 180 | ～70 | ||||||
| DSF-N2-1600 | 1600 | 80/120/160 | 94/78/66 | 450 | 1500×580 | 1800×760 | 780×385(375) |
| 200 | ～60 | ||||||
| DSF-N2-2000 | 2000 | 110/160/200 | 79/66/57 | 500 | 1850×650 | 2150×840 | 860×425(415) |
| 250 | ～50 | ||||||
| DSF-N2-2500 | 2500 | 120/170/230 | 68/57/46 | 550 | 2100×700 | 2400×920 | 940×465(455) |
| 280 | ～40 | ||||||
| DSF-N2-3000 | 3000 | 120/180/240 | 64/52/43 | 650 | 2400×900 | 2400×1200 | 1220×590(580) |
| 300 | ～35 |
※1The above Continuous SPM (No Load) value is for crank motion.
※2Dimensions in parentheses ( ) show the height above the bolster.
