High-Speed NC Roll Feeder : H Series
- Mã SP: H07,H13,H25
-
It's a high-end model with press following speed of 1,000 spm.
The material releasing mechanism using electromagnet driven by inverter doesn't need compressed air. It provides stable release timing and numerical control about pressure for materials.
New control unit automatically adjusts feed acceleration by specified feed langth and press stamping speed. And it provides multi layer operation with option unit MP6. A level meter for monitoring the load of the feed motor is also installed.

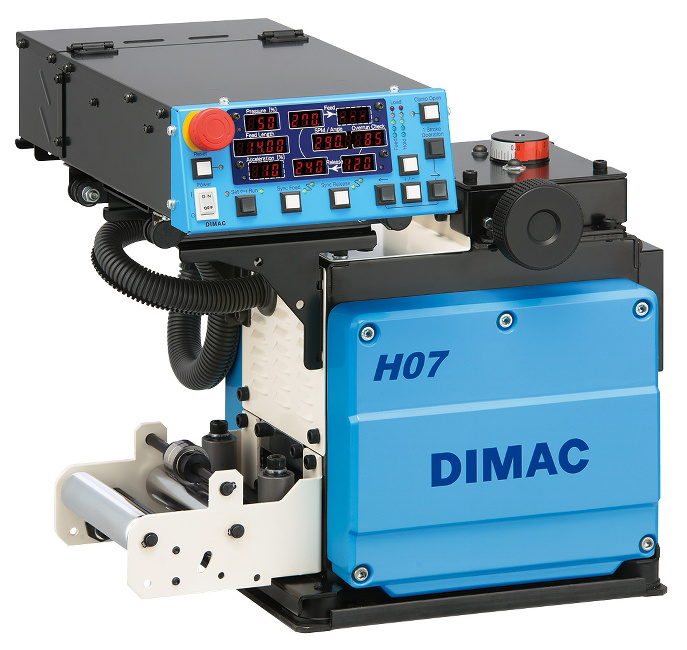

| H07 | ||
|---|---|---|
| Limit of Matrial | Max. Width | 75mm |
| Max. Thickness | 1.2mm | |
| Max. Stamp Speed | 1000spm | |
| Material Feeding | Method | Roller + Servomotor |
| Feed Length | 999.99mm Max. Adjusted by 0.01mm unit. | |
| Feed Acceleration | Automatic calculation *1 | |
| Repeatability | ±0.05mm *2 | |
| Material Pressing | Method | Solenoid *3 |
| Pressing Capacity | 0～1500N Adjusted by 101 step. | |
| Material Releasing Method | Solenoid | |
| Required Power Supply | Three-phase 200V±10% 50/60Hz | |
| Product Weight | 34kg | |

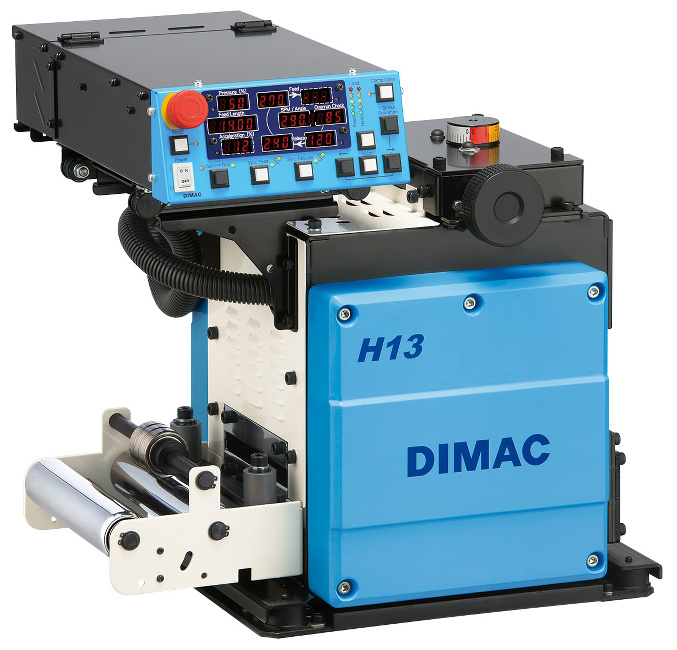

| H13 | ||
|---|---|---|
| Limit of Matrial | Max. Width | 130mm |
| Max. Thickness | 1.6mm | |
| Max. Stamp Speed | 1000spm | |
| Material Feeding | Method | Roller + Servomotor |
| Feed Length | 999.99mm Max. Adjusted by 0.01mm unit. | |
| Feed Acceleration | Automatic calculation *1 | |
| Repeatability | ±0.05mm *2 | |
| Material Pressing | Method | Solenoid *3 |
| Pressing Capacity | 0～2500N Adjusted by 101 step. | |
| Material Releasing Method | Solenoid | |
| Required Power Supply | Three-phase 200V±10% 50/60Hz | |
| Product Weight | 52kg | |

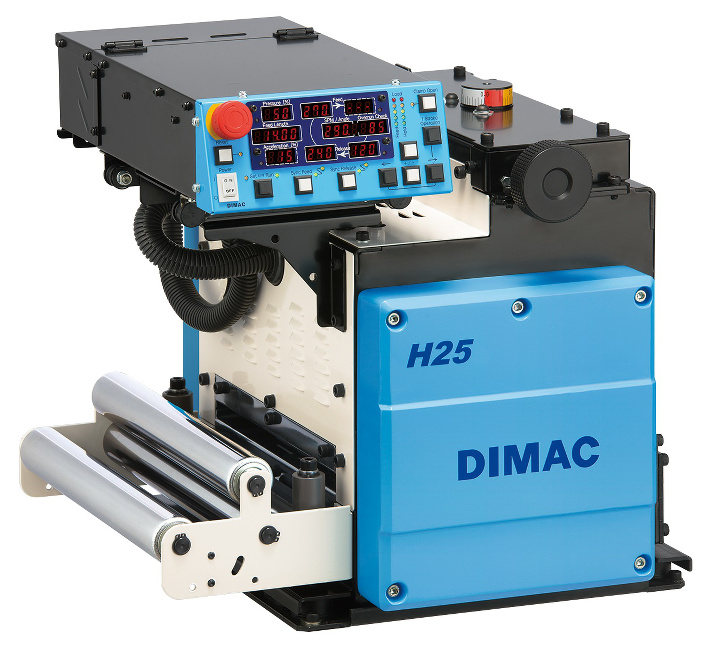

| H25 | ||
|---|---|---|
| Limit of Matrial | Max. Width | 250mm |
| Max. Thickness | 1.6mm | |
| Max. Stamp Speed | 700spm | |
| Material Feeding | Method | Roller + Servomotor |
| Feed Length | 999.99mm Max. Adjusted by 0.01mm unit. | |
| Feed Acceleration | Automatic calculation *1 | |
| Repeatability | ±0.05mm *2 | |
| Material Pressing | Method | Solenoid *3 |
| Pressing Capacity | 0～2500N Adjusted by 101 step. | |
| Material Releasing Method | Solenoid | |
| Required Power Supply | Three-phase 200V±10% 50/60Hz | |
| Product Weight | 66kg | |
