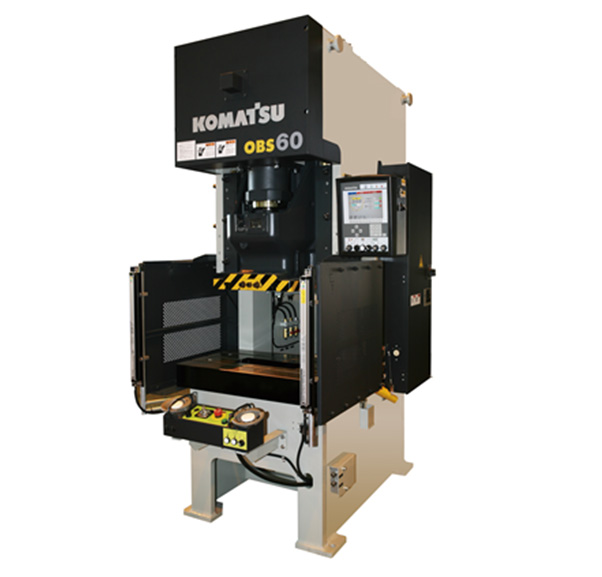

Komatsu Power Presses OBS series
Mã SP: Komatsu OBS60
Easier and safer to use. The best selling machine with all functions incorporated into the simple body.
Komatsu Power Presses
OBS series
OBS35 / OBS45 / OBS60
OBS80 / OBS110 / OBS150 / OBS200
- High Rigidity Frame
- Operability and safety
- High precision guide mechanism to absorb left-right deflection
- Purpose：General
- Frame：Gap
- Point：1pt
- Capacity：350 - 2000kN

Chi tiết sản phẩm

Details : OBS35 / OBS45 / OBS60

Model			OBS35			OBS45			OBS60
Type			S	H	L	S	H	L	S	H	L
Capacity		kN	350			450			600
Slide Stroke		mm	80	40	130	100	50	140	120	90	160
Max SPM		min^-1	120	240	100	100	200	100	85	150	85
Die Height		mm	210	210	290	250	250	300	300	300	350
Slide Adjustment		mm	55			60			70
Slide	L-R	mm	350			400			500
Slide	F-B	mm	300			350			400
Bolster	L-R	mm	700			800			900
	F-B	mm	400			450			550
	Thickness	mm	86			110			130

Details : OBS80 / OBS110 / OBS150 / OBS200

Model			OBS80			OBS110		OBS150		OBS200
Type			S	H	L	S	L	S	L	S	L
Capacity		kN	800			1100		1500		2000
Slide Stroke		mm	130	100	180	150	200	200	250	250	300
Max SPM		min^-1	75	110	75	65		55		50
Die Height		mm	320	300	350	350	380	420	450	450	480
Slide Adjustment		mm	80			100		100		120
Slide	L-R	mm	550			620		700		850
Slide	F-B	mm	450			530		550		650
Bolster	L-R	mm	1000			1100		1250		1450
	F-B	mm	600	460	600	680		760		840
	Thickness	mm	140			150		165		190

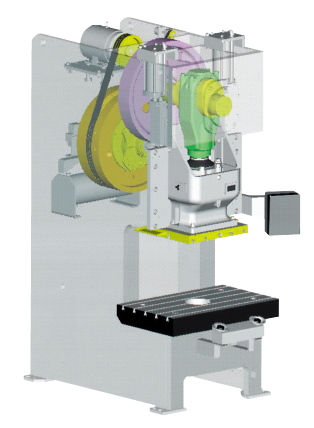

High Rigidity Frame

A higher level of frame rigidity, essential for improved dynamic accuracy, has been achieved. Deformation is curbed and low noise and low vibration have been achieved

Operability and safety

SIT4 controller
Easy-to-see SIT4 controller for safe, secure and smooth work is equipped, and devices for preventing unexpected machine start and human entry are due.

8.4 Inch TFT LCD Monitor Achieved High Visibility
8.4inch TFT LCD monitor is equipped to operate OBS safety, surely and smoothly.2-language display also helps your global product activity.

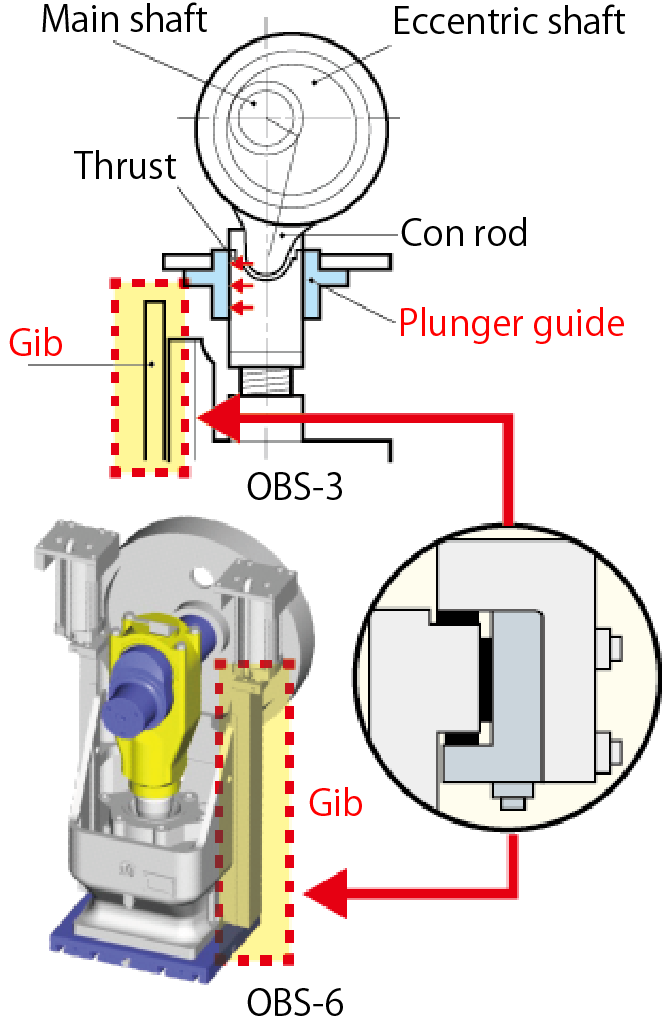

High precision guide mechanism to absorb left-right deflection

High precision is often required on low load presses. Haven't you ever experienced cracks on corners with square blanking though nothing problem with round? OBS precisely does it.

A plunger guide mechanism is used on the drive system for absorbing the thrust force through eccentric motion not to transmit to the die. (OBS25 - 60)　Further more, the high precision is maintained for a long time together with the six face gib.
