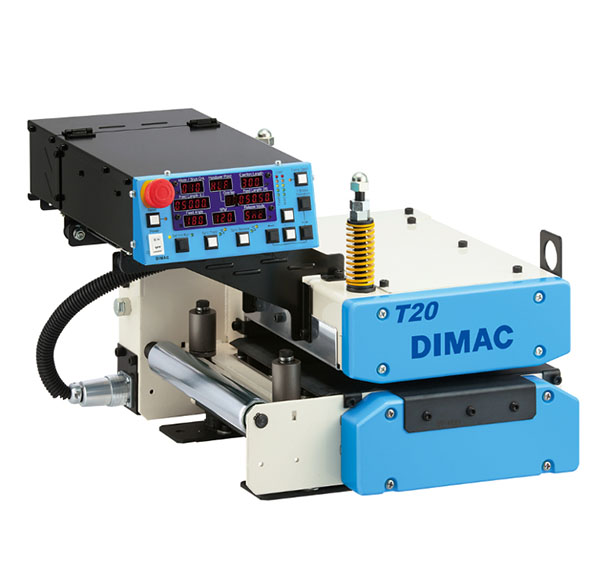

T20 DIMAC
- Mã SP: T20 DIMAC
-
In the model of 3.2mm maximum material thickness, you can choose from two types of width. T20 / T30 is equipped with a C-type frame. workpiece can be supplied from the machine front.
For basic specification, prease refer below table.
| T20 | |||
|---|---|---|---|
| Limit of Matrial | Max. Width | 200mm | |
| Max. Thickness | 3.2mm | ||
| Max. Stamp Speed | 200spm | ||
| Material Feeding | Method | Roller + Servomotor | |
| Feed Length | 999.99mm Max. Adjusted by 0.01mm unit. | ||
| Feed Speed | Automatic calculation *1 | ||
| Standard Load Width / Thickness Coil Mode | 50/3.2mm 200/1.6mm | ||
| Standard Load Width / Thickness Sheet Mode | 200/3.2mm MAX Feeding material weight 15kg | ||
| Material Pressing | Method | Spring | |
| Pressing Capacity | 1700N Adjusted by screws. | ||
| Material Releasing Method | Air Cylinder | ||
| Sheet Mode | Press shoot count | MAX 999 1 unit setting | |
| Discharge Length | MAX999mm 1mm unit setting | ||
| Required Power Supply | Three phase or single phase 200V±10%, 50/60Hz | ||
| Product Weight | Feed side (with controller)48kg Pull side 46kg | ||
*1 Calculated by the press rotational speed settting and the feed angle setting.
