AIDA CFT SERIES
- Mã SP: CL000046
-
• Maker: AIDA Engineering
• Made in: Japan
• Prices: Please call

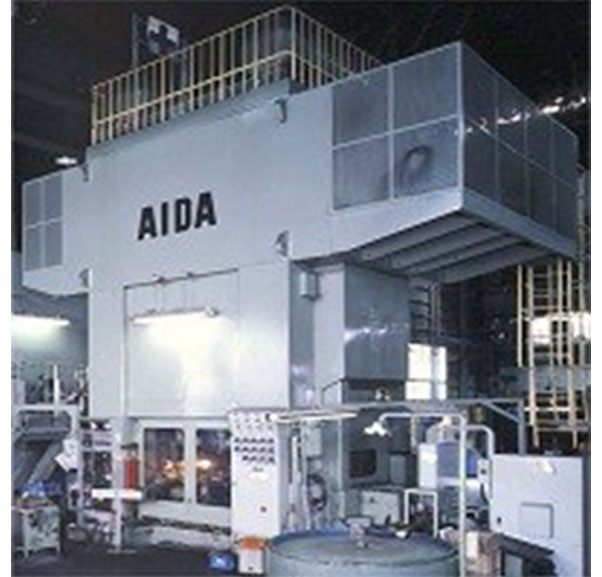

AIDA CFT SERIES
High productivity using proven transfer technology.
- The 2-point suspension straightside frame has high rigidity.
- Excellent eccentric loading capability significantly extends tooling die life.
Capacity Range
Press capacities range from 6000 kN to 20000 kN.
| Model | Capacity | Stroke Length | Strokes per Minute | Die Height | Slide Area | Bolster Area | Rated Tonnage Point | Bed Knockout Capacity | Number of Stages |
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (kN) | ||
| CFT-6000 | 6000 | 250 | 30～45 | 650 | 1200×750 | 1200×900 | 7 | 300 (150 each) | 3 |
| CFT-8000 | 8000 | 250 | 25～35 | 650 | 1200×750 | 1200×900 | 7 | 400 (200 each) | 3 |
| CFT-10000 | 10000 | 250 | 25～35 | 650 | 1500×1000 | 1500×1100 | 7 | 500 (250 each) | 3 |
| CFT-12000 | 12000 | 250 | 20～30 | 650 | 1500×1000 | 1500×1100 | 7 | 600 (300 each) | 3 |
