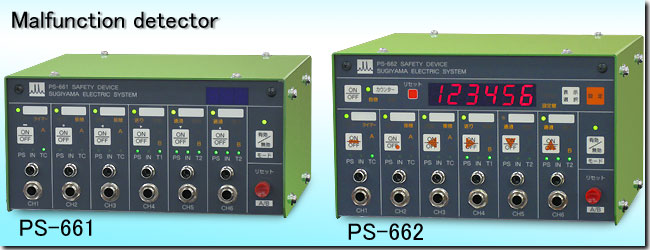

PS-661/662 Malfunction detector
Mã SP: PS-661/662
The safety device PS-662 is a malfunction-detecting device to monitor stamping processes, such as material end, miss-feeding and miss-ejection in automatic press stamping.
PS-662 inspects the processing by utilization of sensor input connected to PS-662 and the detection-timing signal which synchronizes with the operation of the press machine. When the malfunction is detected, a stop signal is output to the press machine.
The lot counter and the total counter are built in PS-662. The counter can control the number of products made by the press stamping.

Specification	Detection channels	6
	Detection timings	3 input
	Power source for sensor	12 V , 600 mA (max.)
	Detection style	6 types (Touch, Synchronization, Extraction, Timer, Passage, Miss-feed)
	SPM	1500 SPM (max.)
Output	Emergency, T.D.C., alarm, continuous inhibition
Output	Relay output	250 VAC / 30 VDC , 2A (max.)
Input	Input Specification	Internal volt system (12 VDC)
	H level	9.0V or over, 1mA or below
	L level	3.0V or below, 8mA or over (12mA MAX)
Counter (PS-662)	Digits	6
	Count speed	1500 SPM (max.)
	Backup	2 weeks
Power source	Power supply voltage	AC100 ~ 240 V +/-10% 50/60Hz
	Power consumption	20 VA (max)
	Weight	Body 2.4 kg (PS-661), Body 2.5 kg (PS-662) (inc. mounting brackets.)

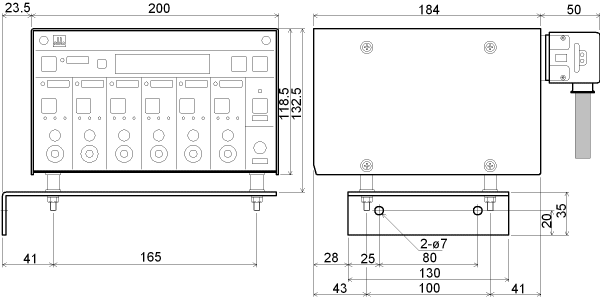

	Dimensions(WHD)	200 * 98.5 * 184 mm (PS-661) 200 * 118.5 * 184 mm (PS-662) (An umbo is not included.)
	Ambient operating temperature	0 to 55 degree C (No sudden temperature change during the use.)
	Ambient operating humidity	35~85% RH (non condensing)
	Attachments	Output cable (Standard: 5 m) US-1 5 (blue, white, yellow, orange, pink) US-2 1 (red) Instruction manual
