Mist spray system , hệ thống phun sương

˂

˃

Less foams inside the tube for the oil

PS-219 does not employ an oil control regulator with the valve that may form foams between the oil reservoir and the spray nozzle .

Finer adjustment of the oil amount

The oil flow is controlled by the pressure value of the oil and oil flow regulator of the spray nozzle.
The pressure value for the oil is low. The pressure sensor indicates the value by 0.1 KPa step.

Reduction of oil consumption

Finer adjustment of the oil flow is available. This makes it possible to reduce the oil consumption.

Easy-to-use

Less operational and setting areas are in PS-219. This facilitates the operation for users.

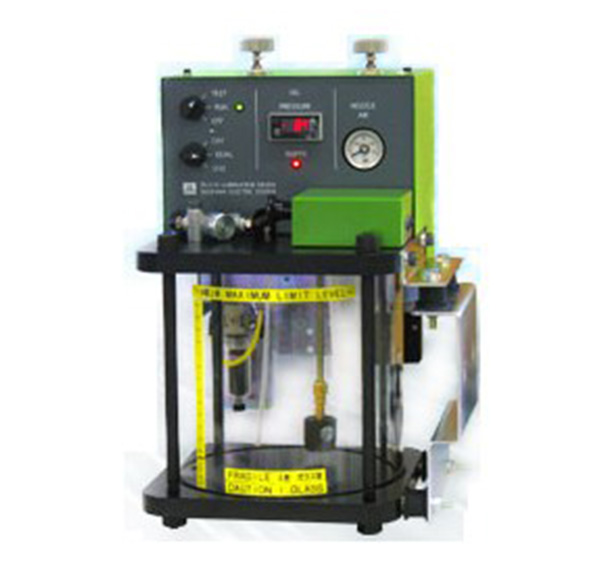

PS-219

PS-219

PS-219 Dimensions

Channels	2
Tank capacity	3L
Height of nozzle installation	5m (max.)
Amount of anointment	20ml/min (max./ch)
Proper pressure for nozzle unit	0.6Mpa
Power supply voltage	AC85-264V
Maximum current	0.25A (max.)
Ambient operating temperature	0 to 55 degree C (No sudden temperature change during the use.)
Ambient operating humidity	35~85% RH (non condensing)
Environment atmosphere	Corrosive gas and dust should not exist.
Adjustment viscosity	1-10mm2/s (1-10cSt)
