Mist spray system Sugiyama PS-254/252
- Mã SP: CL000043
-

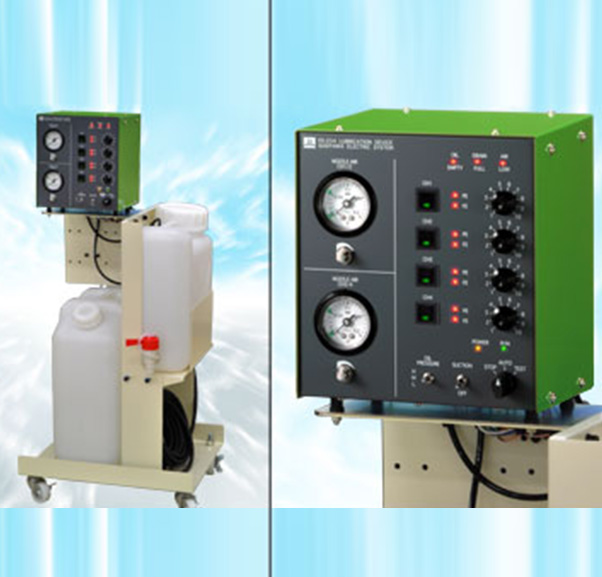

PS-254/252 mist spray system was developed by the advanced technology to solve the processing oil lubrication in the metal stamping press almost.
That is achievement to the level of coating and uniformity, furthermore, the superior performance like the clean to the ambient environment etc.
Moreover, the collection of adjustment-free of the nozzle setting and the drain is the best for achievement and the eco-driving according to the use of a newly developed atomization chamber.
Features
| Smooth lubricating oil in adoption of newly developed, high-speed, electromagnetic pomp with little pulse. | |
| The step-rotary switch is making easy setting the flow control. | |
| A newly developed nozzle is adopted without adjustment on the nozzle side. | |
| The independent adjustment of the upper and lower atomization air achieves the best lubrication. | |
| The open type tank recharges the stamping oil without the press stop. The polyethylene tank of strong chemical resistance was adopted. | |
| The chamber for atomization is improved, and maximum width of atomization in a minimum number of nozzles is obtained. About twice the width of atomization can be expected at the chamber use. | |
| The error checking and correcting functions such as pumps and nozzles can be added, the die is protected from stopping the stamping oil. |
Dimensions
PS-254 ControllerPS-254
/ PS-252
20L oil reservoir with float switch (option)
Specification
| Controller | |
| Model | PS-254 / PS-252 |
| Input | CLUTCH,CAM,OE,DF,PE,FE,AL |
| Input specification | Internal voltage (DC24V) type Connect the contact of the semiconductor switch of the no-voltage |
| Circuit current | MAX 5 mA |
| Output | STOP, READY, PLC (option) |
| Output specification | STOP, READY: Relay contact AC250/DC30V 3A max. PLC (option): Photo relay contact DC24V 100mA max. |
| Power supply, etc | |
| Power supply voltage | IAC 100-120 V or AC 200-220 V |
| Maximum current | 1.6A/AC100V, 0.8A/AC200V max. |
| Weight | 3.5kg/PS-254, 3kg/PS-252 |
| Dimensions(WHD) | 200 * 216.5 * 228 mm (An umbo is not included.) |
| Ambient operating temperature | 0 to 55 degree C (No sudden temperature change during the use.) |
| Ambient operating humidity | 35~85% RH (non condensing) |
| Environment atmosphere | Corrosive gas and dust should not exist. |
| Kinematic viscosity | 1-10mm2/s (1-10cSt) |
| Flow rate | max. 9ml/min / CH |
| Pump head | 1.5m |
| Nozzle | |
| Model | ST8PL-1.0 (Standard) |
| Width of spraying | max. 200mm |
| Nozzle orifice size | 1mm in diameter |
| Tube for piping | |
| Outside diameter | 4mm |
| Internal diameter | 2.5mm |
| Material | Polyurethane (red), Polyolefin (clear) |
| Model | ST8-0.5 |
| Width of spraying | max. 200mm |
| Nozzle orifice size | 0.5mm in diameter |
| Tube for piping | |
| Outside diameter | 4mm |
| Internal diameter | 2.5mm |
| Material | Polyurethane (red/yellow), Polyolefin (clear) |
| Model | ST8-1.0 |
| Width of spraying | max. 200mm |
| Nozzle orifice size | 0.5mm in diameter |
| Tube for piping | |
| Outside diameter | 4mm |
| Internal diameter | 2.5mm |
| Material | Polyurethane (red/yellow), Polyolefin (clear) |
| 20L oil reservoir with float switch (option) | |
| Model | PS-25421 |
| Capacity | 20 liters |
| Acceptable oil | Oil that doesn’t corrode metal and resin |
| Level sensor | Float type |
| Dimensions(WHD) | 350 * 410 * 170 mm |
| Material | Polyethylene |
| Weight | 1.4kg |
| Pressure-sensor unit (option) | |
| Model | PS-25404 (4CH), PS-25402 (2CH) |
| Sensor | ZSE80F-02-N-C made of SMC |
| Dimensions(WHD) | 200 * 83.5 * 200 mm (An umbo is not included.) |
| Weight | 2.7kg（4CH用） / 2.5kg（2CH用） |
