NC Roll Feeder J series
- Mã SP: J06, J15, J25
-
The model whose release mechanism is based on fast response air diaphragm. Maximum stamp speed is 300spm and material width is up to 2.3mm. 3 models are presented for various width and thickness

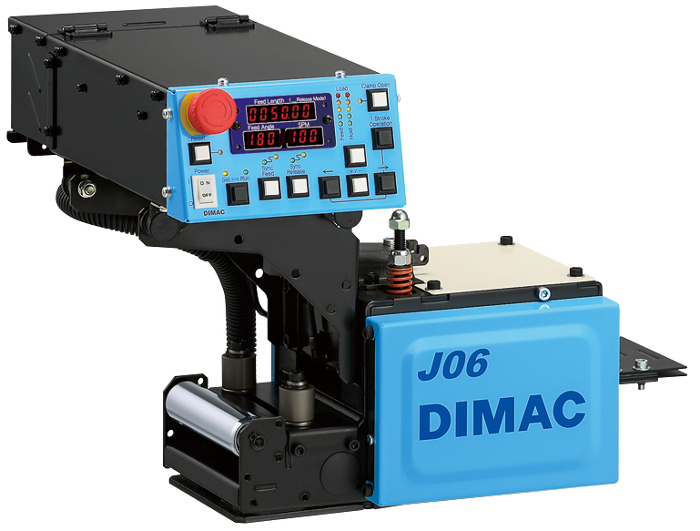

The smallest model in our feeders. Maximum material width is 70mm and the thickness is 1.2mm. The table below shows basic specifications.
| J06 | ||
|---|---|---|
| Limit of Matrial | Max. Width | 70mm |
| Max. Thickness | 1.2mm | |
| Max. Stamp Speed | 300spm | |
| Material Feeding | Method | Roller + Servomotor |
| Feed Length | MAX 9999.99mm Adjusted by 0.01mm unit. | |
| Feed Speed | Automatic calculation *1 | |
| Material Pressing | Method | Spring |
| Pressing Capacity | MAX 785N Adjusted by screws. | |
| Material Releasing Method | Air diaphragm cylinder | |
| Required Power Supply | Three phase or single phase 200V±10%, 50/60Hz | |
| Product Weight | 13kg | |

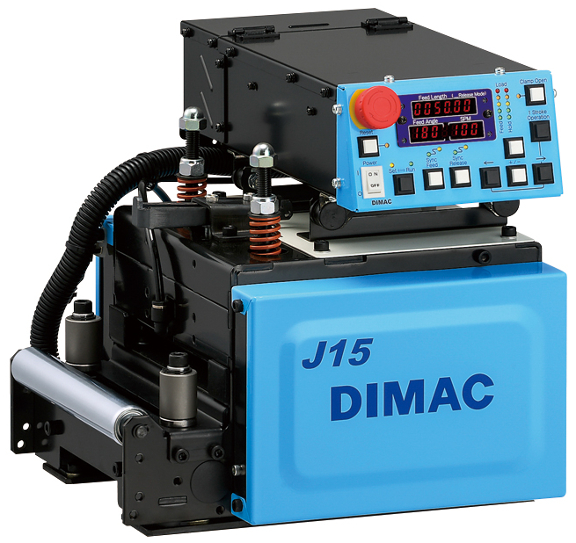

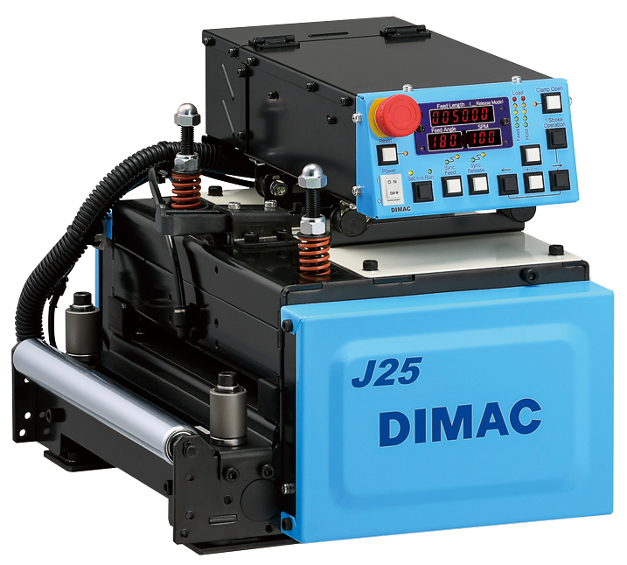

wo models whose limit of material width is 2.3mm are presented for various material width.
| J15 | J25 | ||
|---|---|---|---|
| Limit of Matrial | Max. Width | 150mm | 250mm |
| Max. Thickness | 2.3mm | ||
| Max. Stamp Speed | 250spm | ||
| Material Feeding | Method | Roller + Servomotor | |
| Feed Length | MAX 9999.99mm Adjusted by 0.01mm unit. | ||
| Feed Speed | Automatic calculation *1 | ||
| Standard Load Width / Thickness | 150/1.6mm 60/2.3mm | 250/1.2mm 150/1.6mm 60/2.3mm | |
| Material Pressing | Method | Spring | |
| Pressing Capacity | MAX 1470N Adjusted by screws. | ||
| Material Releasing Method | Air diaphragm cylinder | ||
| Required Power Supply | Three phase or single phase 200V±10%, 50/60Hz | ||
| Product Weight | 25kg | 28kg | |
